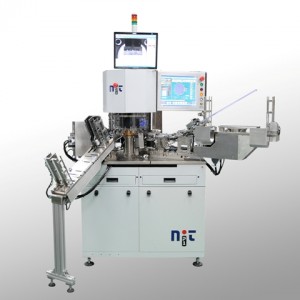

NiT P1
The NiT P1 series is a 24-heads turret based test handler developed to handle SIP circuit devices using the flexibility of vibrating bowl or tube.
This High Speed Test Handler has the flexibility of configuring multiple process capabilities to meet today’s demanding environment of high productivity semiconductor manufacturing on Test ,Laser Marking,Vision Inspections and Packing.
Some of its handling capabilities include multiple test sites, vision inspections, part orientation, laser marking, reject sorting in tube stacker or bucket, and taping. It also provides an easy conversion to various semiconductor packages.Products Specification
|
Specification |
NiT P1 |
|
Package Type |
SIP family |
|
Input |
Tube Stacker Feeder, Vibrating Bowl Feeder |
|
Output |
Tape and Reel
Tube Stacker output
Sorting Bucket |
|
Carrier Tape Type |
Embossed Carrier Tape |
|
Test Sites |
Up to 5 characteristic Test Sites |
|
Vision Inspection |
Mark Inspection
Lead Coplanarity / Pad Inspection
5-Side Inspection
Surface Inspection
In-pocket Inspection |
|
Performance |
UPH up to 25K*，MTBA ≥ 1 hour/ |
|
General Specification |
1,000mm (L) x 1,000mm (W) x 1,700mm (H) |
